The Efficiency of Rotor Replacement for ATOX50

Publishdate：2021-07-19 Views：1112

We replaced the rotor of ATOX50 raw mill and other related accessories which were upgraded and optimized , forced the capacity of productivity arising as 5% more and working in good condition.

1, The before status:

item	Percentages
item	limestone	Sandstone	bauxite	Sulfate slag	total
Raw material	82.6	6.3	5.5	5.6	100

2, The running status before replacement

water injection capacity		2	t/h
thickness of material layer		60-80	mm
ratio of vibration		0.7	mm/s
pressure of grinding		13	MPa
temper of wind		205	℃
current of main motor		210-220	A
air separator	speed of rotor	1252	rpm
air separator	operation current	213	A
hot fan	operation current	170	A
elevator	operation current	215-225	A

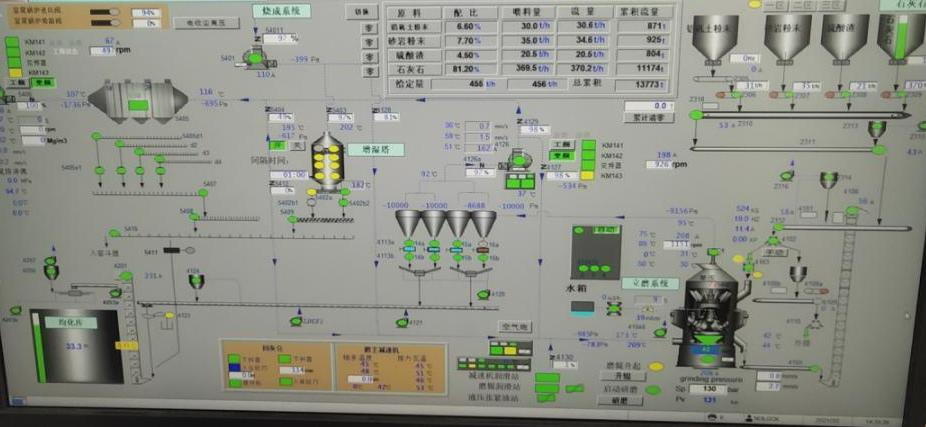

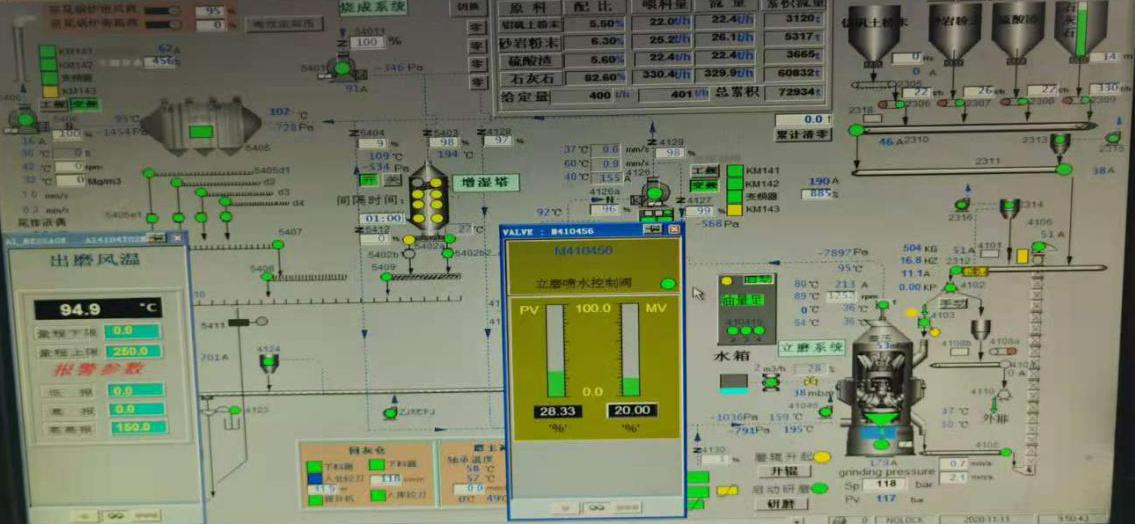

The control panel status before replacement

3, The production before replacement.

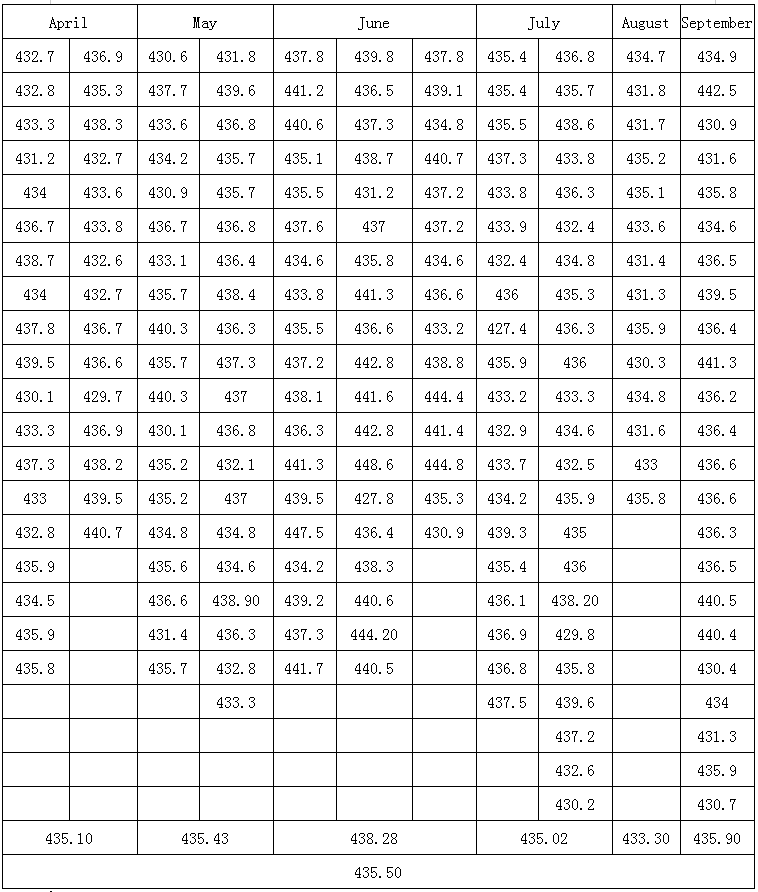

The production of April, May,June, July,August and September as below:

2, Parts replaced.

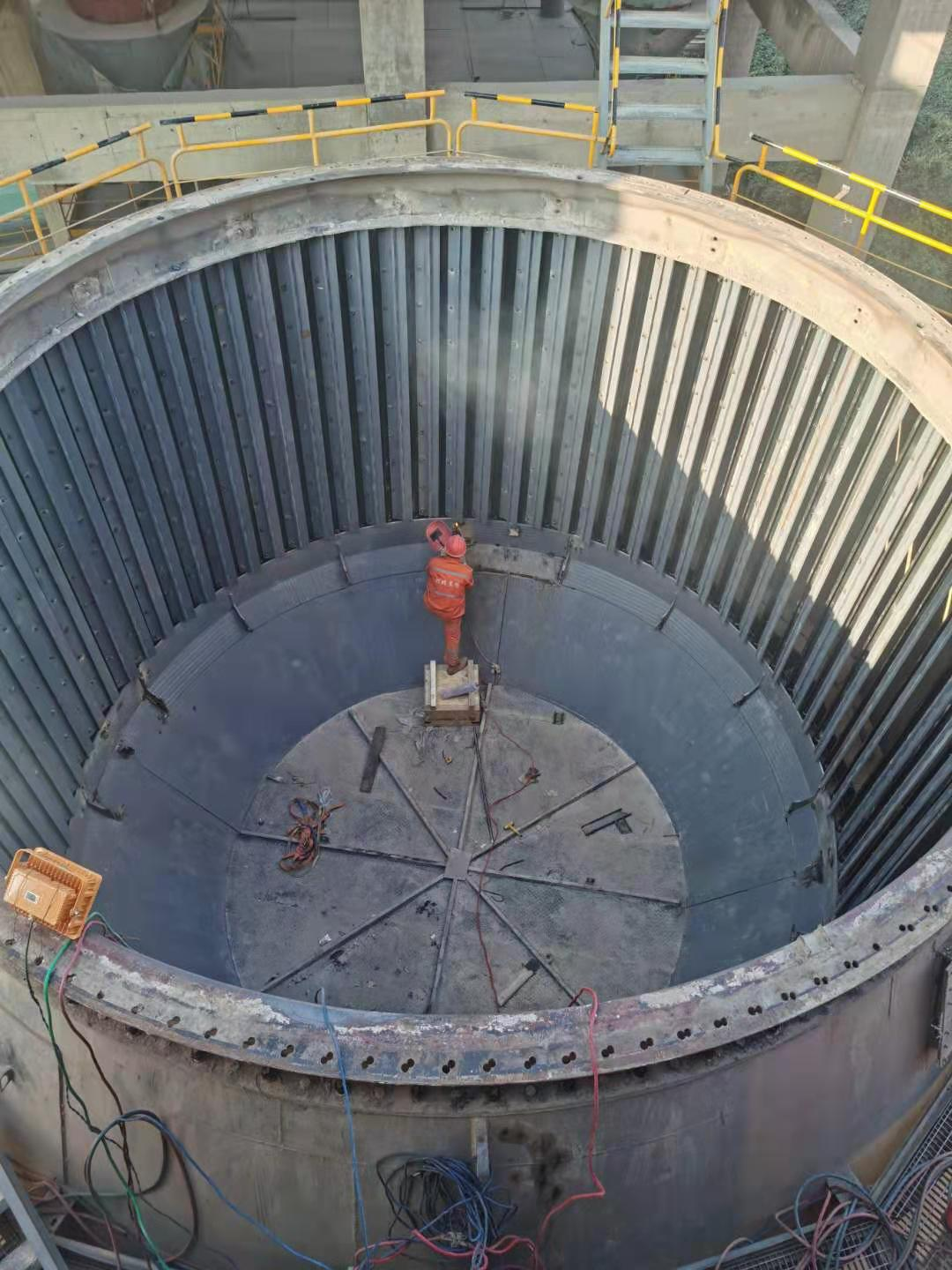

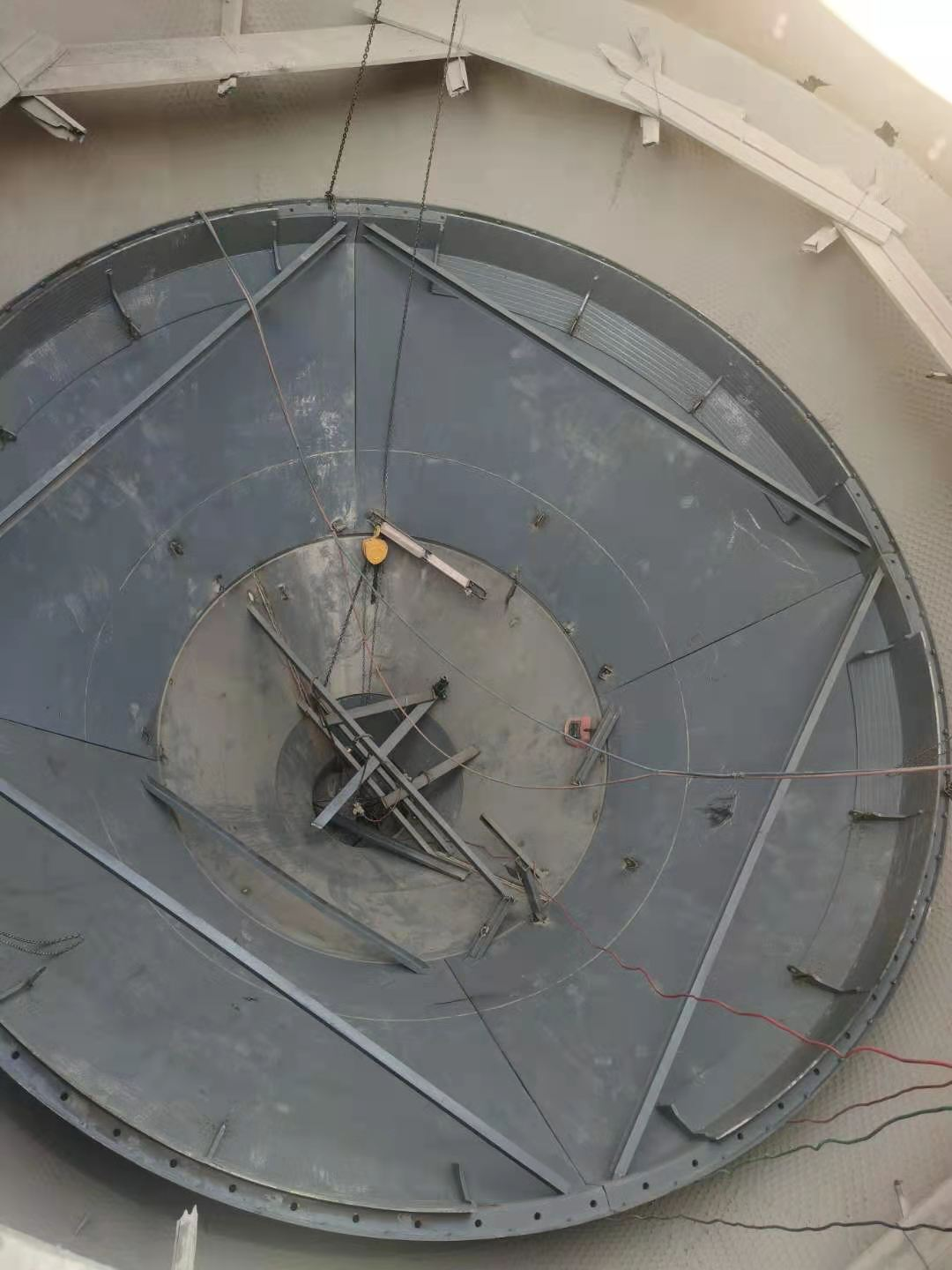

1, Replace and optimize the cone of separator to reduce the abrasive to enhance the efficiency.

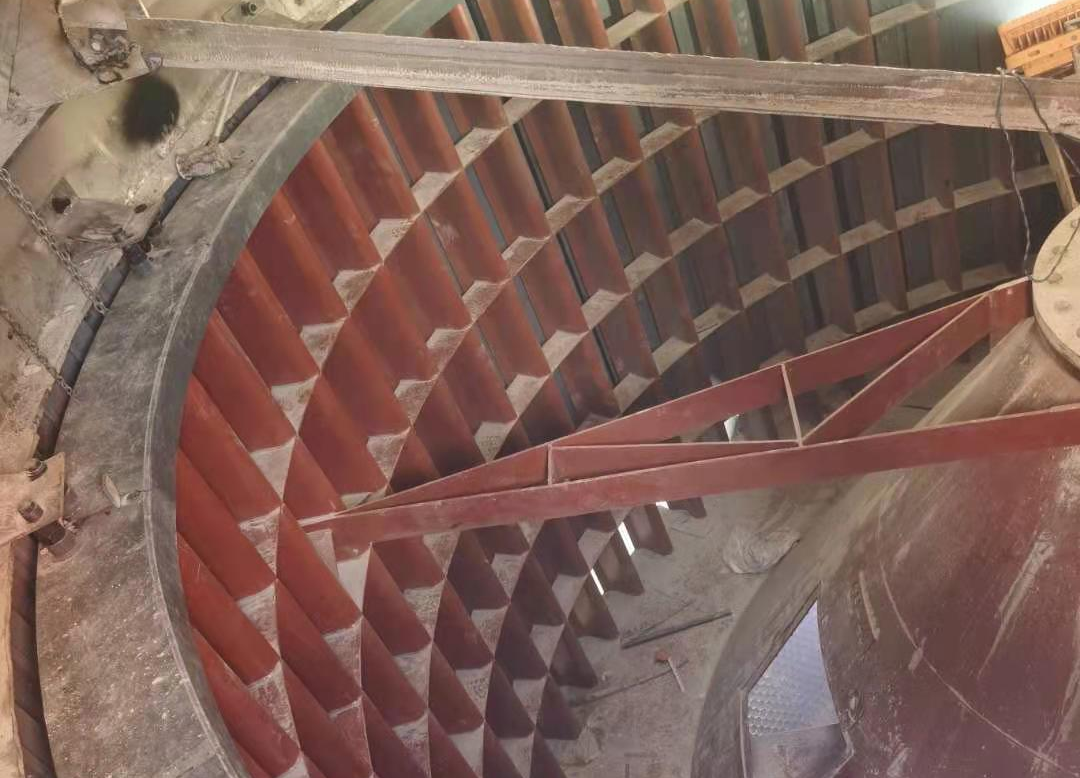

2、 Change the guard vanes

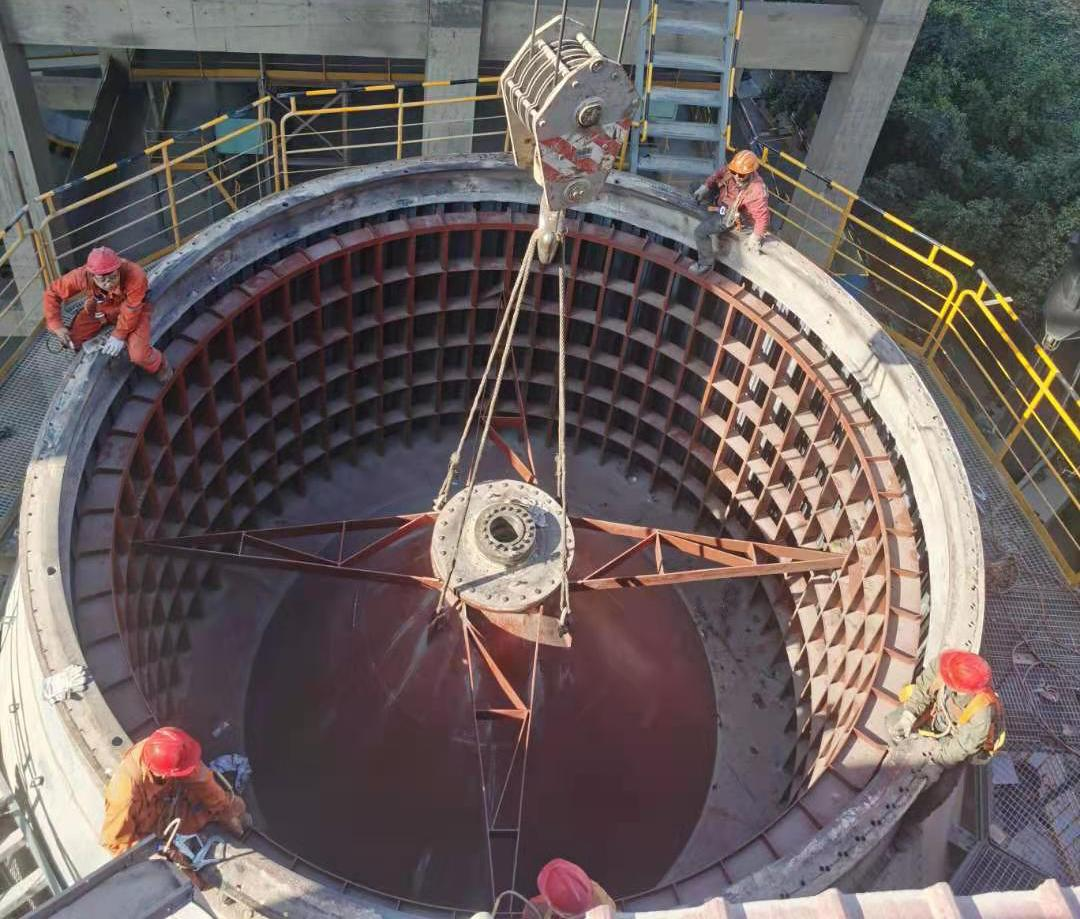

3、Replace the new upgraded rotor which is optimized with different vanes and angle of flow. Meanwhile , we add the flange on the top to reduce the abrasive to improve the efficiency.

2、Change the labyrinth seal

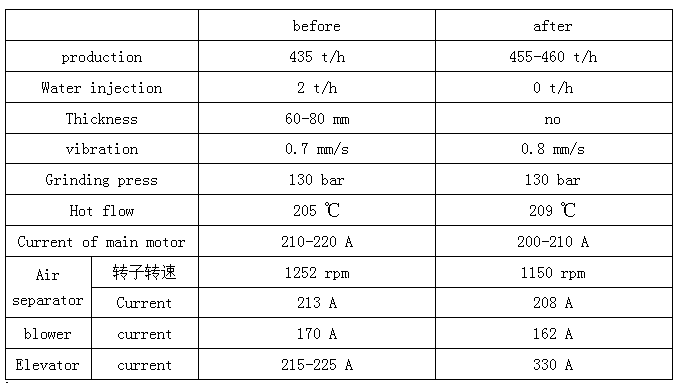

5, The efficiency after replacement.

Based on the same working conditions, the production has been improved as 5% from 435T/H to 455-460T/H.
